Sub-Zero Refrigerator Air Filter Replacement Tutorial for Built-In Models

Fresh air inside a refrigerator protects food taste and smell. Built-in Sub-Zero units rely on an internal air filter to control odors and keep stored items from picking up unwanted smells. This guide walks through the full air filter replacement process for built-in Sub-Zero refrigerators used across the USA. Every step stays simple, clear, and easy to follow.

This tutorial focuses on built-in models found in many US homes, condos, and apartments. The steps match common Sub-Zero layouts and control panels used nationwide.

Where the Air Filter Is Located in Built-In Sub-Zero Refrigerators

Most built-in Sub-Zero refrigerators place the air filter on the inside back wall. The filter sits behind a small access door. This door blends into the interior liner, so it may not stand out at first glance.

Classic Series units usually place the filter near the upper rear section. Designer Series models often mount the filter closer to the center back wall. PRO models may place it slightly higher due to deeper cabinet space.

Shelf removal may help in tight layouts. A full shelf does not need removal in many units, but sliding it forward creates more room to work. This step keeps the process smooth and avoids forcing the access door.

Tools and Parts Needed Before Replacing the Filter

A compatible Sub-Zero air filter cartridge is the only part needed. Filters come sealed and ready to install.

No tools are required for this task. The filter housing uses a snap and flap system designed for quick replacement.

Clean hands help keep the new filter free from grease or debris. The cartridge should stay sealed until installation time. The old filter should go into household trash after removal.

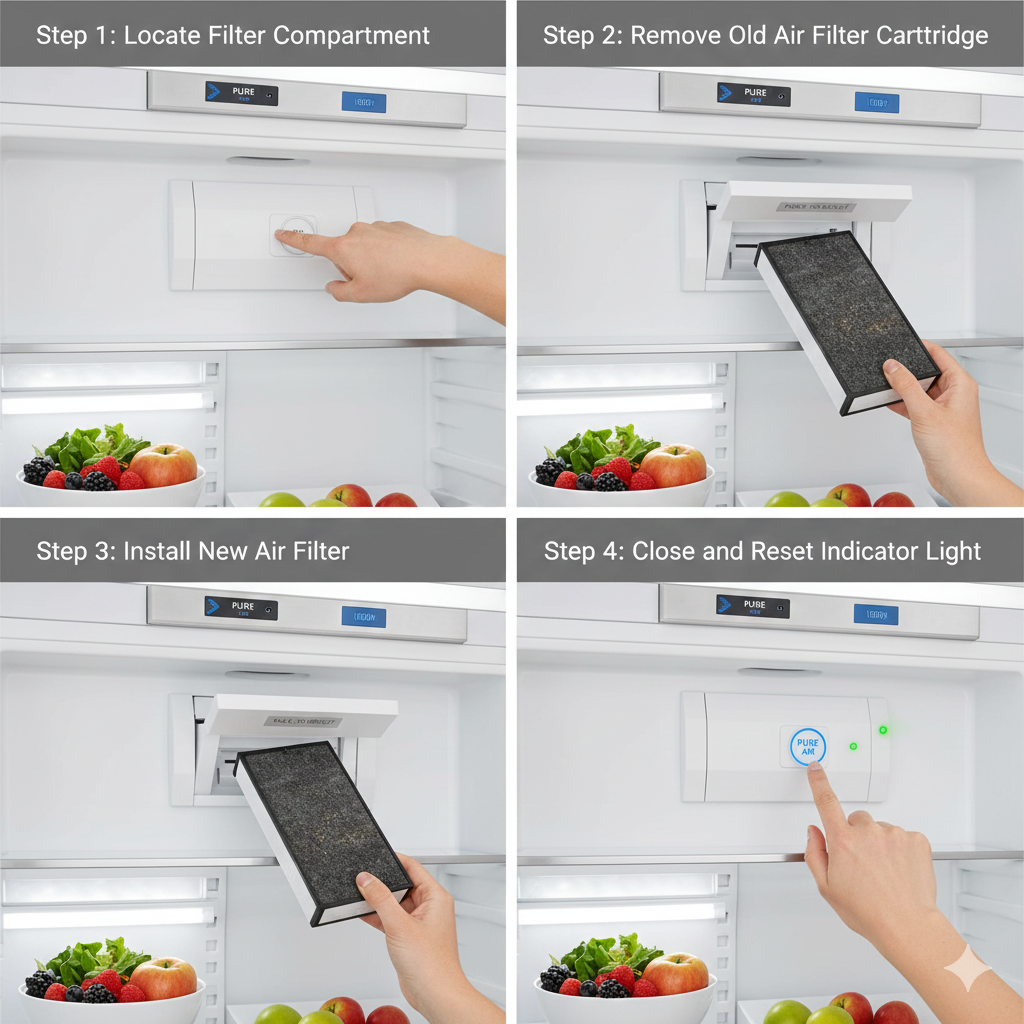

Step-by-Step Sub-Zero Air Filter Replacement Tutorial

Open the Air Filter Access Door

The access door sits flush against the back wall. A small grip point appears at the top or bottom edge.

A gentle pull opens the outer cover. The door flips forward or downward, depending on model type. No force should feel needed during this step.

Remove the Old Air Filter Cartridge

An inner flap appears once the door opens. This flap often includes a label that reads “pull to eject.”

A firm pull on the flap pushes the old filter outward. The cartridge slides free and lifts out with ease.

The used filter may show dark spots or trapped debris. Disposal can happen right away to avoid lingering odors.

Install the New Sub-Zero Air Filter

The new cartridge slides into the same slot. The connector end must face downward.

A light push seats the filter in place. No twisting or locking motion is needed. The cartridge should sit flush once aligned correctly.

Close the Filter Housing Correctly

The inner flap folds back until a click is heard. This click signals a locked position.

The outer cover flips back into place and rests flat against the back wall. A smooth close confirms the housing sits secure.

How to Reset the Sub-Zero Air Filter Indicator Light

The control panel includes a Pure Air button. This button sits near the temperature controls in most built-in models.

Pressing and holding the Pure Air button for five seconds resets the filter light. The light should stop flashing or return to a steady state.

A quick visual check confirms the reset worked. The refrigerator now tracks the new filter life cycle.

When to Replace a Sub-Zero Refrigerator Air Filter

The Pure Air indicator light signals replacement time. A flashing light means the filter reached the end of its cycle.

Most Sub-Zero air filters last about one year in average household use. Heavy cooking odors or frequent door openings may shorten this span.

Unwanted smells inside the refrigerator also signal filter fatigue. Food may absorb odors faster once the filter fills up.

At this point in the guide, deeper background knowledge helps support long-term care. The Ultimate Guide to Refrigerator Air Filters explains filter types, lifespan factors, and odor control basics across many refrigerator brands.

Common Issues During Air Filter Replacement and Fixes

A filter that does not eject usually means the inner flap was not pulled fully. A steady pull solves this issue.

An indicator light that fails to reset often clears after holding the Pure Air button longer. Ten seconds may help on older control panels.

A filter that does not fit often points to incorrect orientation. The connector must face down for proper seating.

Additional reading may help users understand odor movement inside refrigeration systems. How refrigerator air filters improve food freshness and reduce odors explains how clean airflow protects stored food across separate compartments.

Model-Specific Notes for Built-In Sub-Zero Refrigerators

Older built-in units may use a slightly firmer flap mechanism. A controlled pull prevents damage.

Panel-ready models hide the interior design behind custom panels. The filter location stays the same, but lighting angles may differ.

Newer models often include smoother hinge motion on the access door. The process stays the same across versions.

For those handling multiple units or troubleshooting repeated issues, Maintenance, Installation, and Troubleshooting for Refrigerator Filters provides added support across replacement and care tasks.

Regular air filter replacement supports steady cooling and cleaner air inside built-in Sub-Zero refrigerators used throughout the USA. Each step in this guide keeps the process simple, quick, and reliable for long-term use.
